[WIP] How GraphQL Ruby parses queries

[WIP] How GraphQL Ruby parses queries

Recently I started making small contributions to graphql-ruby. This PR to fix a parsing bug got me acquainted with the lexing and parsing of GraphQL queries in Ruby.

On GraphQL Ruby's site, there is documentation on Phases of execution. I hope to do an overview of the Lex and Parse phases, which is not written in Ruby but generates Ruby code 🤯.

I wrote this assuming the reader is just as ignorant as me about compilers. If you spot any inaccuracies in the article, please let me know. If you like to try the code samples in this post, just clone GraphQL-ruby and setup bundle console.

$ git clone https://github.com/rmosolgo/graphql-ruby
$ cd graphql-ruby
$ bundle
$ bundle console # In the console, GraphQL.parse should be available

Lexing

Lexical analysis, is the process of converting a sequence of characters into tokens.

When GraphQL.parse is called, GraphQL Ruby lexes the incoming query as the first step. Let's just give the tokenizer a go.

# In a bundle console

query = <<~GRAPHQL
  query myNamedOperation($input: SomeInputObject!) {
    getProducts(input: $input) {
     id
   }
 }
GRAPHQL

tokens = GraphQL::Language::Lexer.tokenize(query)
# => [(QUERY "query" [1:1]), (IDENTIFIER "myNamedOperation" [1:7]), (LPAREN "(" [1:23]), (VAR_SIGN "$" [1:24]), (INPUT "input" [1:25]), (COLON ":" [1:30]), (IDENTIFIER "SomeInputObject" [1:32]), (BANG "!" [1:47]), (RPAREN ")" [1:48]), (LCURLY "{" [1:50]), (IDENTIFIER "getProducts" [2:3]), (LPAREN "(" [2:14]), (INPUT "input" [2:15]), (COLON ":" [2:20]), (VAR_SIGN "$" [2:22]), (INPUT "input" [2:23]), (RPAREN ")" [2:28]), (LCURLY "{" [2:30]), (IDENTIFIER "id" [3:5]), (RCURLY "}" [4:3]), (RCURLY "}" [5:1])]
Lexing converts a query into a sequence of tokens

This might look messy, but let's just take a look at one token.

tokens[6]
# => (IDENTIFIER "SomeInputObject" [1:32])
# name: IDENTIFIER
# value: "SomeInputOject"
# col: 32
# line: 1
name, value and line/column position

It essentially contains the name, value and the text position of the token. If you mapped the names, here's how the query looks like now:

# => [:QUERY, :IDENTIFIER, :LPAREN, :VAR_SIGN, :INPUT, :COLON, :IDENTIFIER, :BANG, :RPAREN, :LCURLY, :IDENTIFIER, :LPAREN, :INPUT, :COLON, :VAR_SIGN, :INPUT, :RPAREN, :LCURLY, :IDENTIFIER, :RCURLY, :RCURLY]

Ragel is used to built the Lexer function.

Ragel compiles executable finite state machines from regular languages. Ragel state machines can not only recognize byte sequences as regular expression machines do, but can also execute code at arbitrary points in the recognition of a regular language.

This might sound complicated but essentially Ragel is used here to build a program that processes the query string and emits tokens according to a set of rules. At this point, it doesn't care if you have a well formed GraphQL query.

Let’s look at the code from lexer.rl.

%%{
  machine graphql_lexer;

  IDENTIFIER =    [_A-Za-z][_0-9A-Za-z]*;
  NEWLINE =       [\c\r\n];
  BLANK   =       [, \t]+;
  COMMENT =       '#' [^\n\r]*;
  INT =           '-'? ('0'|[1-9][0-9]*);
  FLOAT_DECIMAL = '.'[0-9]+;
  FLOAT_EXP =     ('e' | 'E')?('+' | '-')?[0-9]+;
  FLOAT =         INT FLOAT_DECIMAL? FLOAT_EXP?;
  ON =            'on';
  FRAGMENT =      'fragment';
  TRUE =          'true';

...

  main := |*
    INT           => { emit(:INT, ts, te, meta) };
    FLOAT         => { emit(:FLOAT, ts, te, meta) };
    ON            => { emit(:ON, ts, te, meta) };
    FRAGMENT      => { emit(:FRAGMENT, ts, te, meta) };
    TRUE          => { emit(:TRUE, ts, te, meta) };
    FALSE         => { emit(:FALSE, ts, te, meta) };
    NULL          => { emit(:NULL, ts, te, meta) };
    QUERY         => { emit(:QUERY, ts, te, meta) };
    MUTATION      => { emit(:MUTATION, ts, te, meta) };
    SUBSCRIPTION  => { emit(:SUBSCRIPTION, ts, te, meta) };

...
%%}


def self.emit(token_name, ts, te, meta)
  meta[:tokens] << token = GraphQL::Language::Token.new(
    name: token_name,
    value: meta[:data][ts...te].pack(PACK_DIRECTIVE).force_encoding(UTF_8_ENCODING),
    line: meta[:line],
    col: meta[:col],
    prev_token: meta[:previous_token],
  )
  meta[:previous_token] = token
  # Bump the column counter for the next token
  meta[:col] += te - ts
end
Picked out salient content. I highly encourage the reader to take a look at the source file

Essentially, the Lexer converts characters sequences from the query into tokens. It also does other important things like standardizing, removing non significant spaces/characters.

An interesting thing is to look at how it deals with number representations.

GraphQL::Language::Lexer.tokenize('34.5 10 "5"')

# => [(FLOAT "34.5" [1:1]), (INT "10" [1:6]), (STRING "5" [1:9])]
The Lexer correctly tokenizes the Float and Integer here

Now that we have an array of tokens, we can start parsing them.

The Parsing Step

Next, graphql-ruby uses Racc to parse the tokenized query.

Racc (Ruby yACC) is a LALR(1) parser generator. It is written in Ruby itself, and generates Ruby programs.

Yacc stands for Yet Another Compiler Compiler which provides a tool to produce a parser for a given grammar 🤯. For example, here's the the grammar file for ANSI C.

Let's dig into parser.y.

class GraphQL::Language::Parser
rule
  target: document

  document: definitions_list { return make_node(:Document, definitions: val[0])}

  definitions_list:
      definition                    { return [val[0]]}
    | definitions_list definition   { val[0] << val[1] }

  definition:
      executable_definition
    | type_system_definition
    | type_system_extension

  executable_definition:
      operation_definition
    | fragment_definition

The | stands for union and kind of acts like an OR operator. So here it's basically reading:

  • For a document, it should have a definitions_list
  • that has a definition or a list of definitions (recursive)
  • And each definition can be an executable_definition or a type_system_definition or a type_system_extension

This can go on for a few levels. But let's take a look at a smaller subset of parsing.

arguments_list:
      argument                { return [val[0]] }
    | arguments_list argument { val[0] << val[1] }

argument:
      name COLON input_value { return make_node(:Argument, name: val[0], value: val[2], position_source: val[0]) }

input_value:
      literal_value
    | variable
    | object_value

Familiar? The upper cased tokens are from the earlier lexing step.  The lower cased ones are tokens defined in our parser.

  • For an arguments_list, it could be one argument or many (arguments_list argument).
  • Each argument is defined with a name, separated by a COLON and has an input_value
  • Where the input value can be a literal_value or variable or object_value.

Once we grok this, it's actually quite easy to read! Now, the matched token values are returned in the val array. For example:

For a query string part node(id: 3) , the argument definition returns

[(IDENTIFIER "id" [1:8]), (COLON ":" [1:10]), 3]
(id: 3) parsed as name COLON input_value

Finally, make_node is a method defined to build a node for a branch of the AST.

def make_node(node_name, assigns)
  assigns.each do |key, value|
    if key != :position_source && value.is_a?(GraphQL::Language::Token)
      assigns[key] = value.to_s
    end
  end

  assigns[:filename] = @filename

  GraphQL::Language::Nodes.const_get(node_name).new(assigns)
end
In our example above, make_node instantiates a GraphQL::Language::Nodes::Argument node

Armed with this knowledge, you can should be able to grok most of the grammar. There are a lot of shared definitions in parser.y, it's really neat.

Back to the Spec...

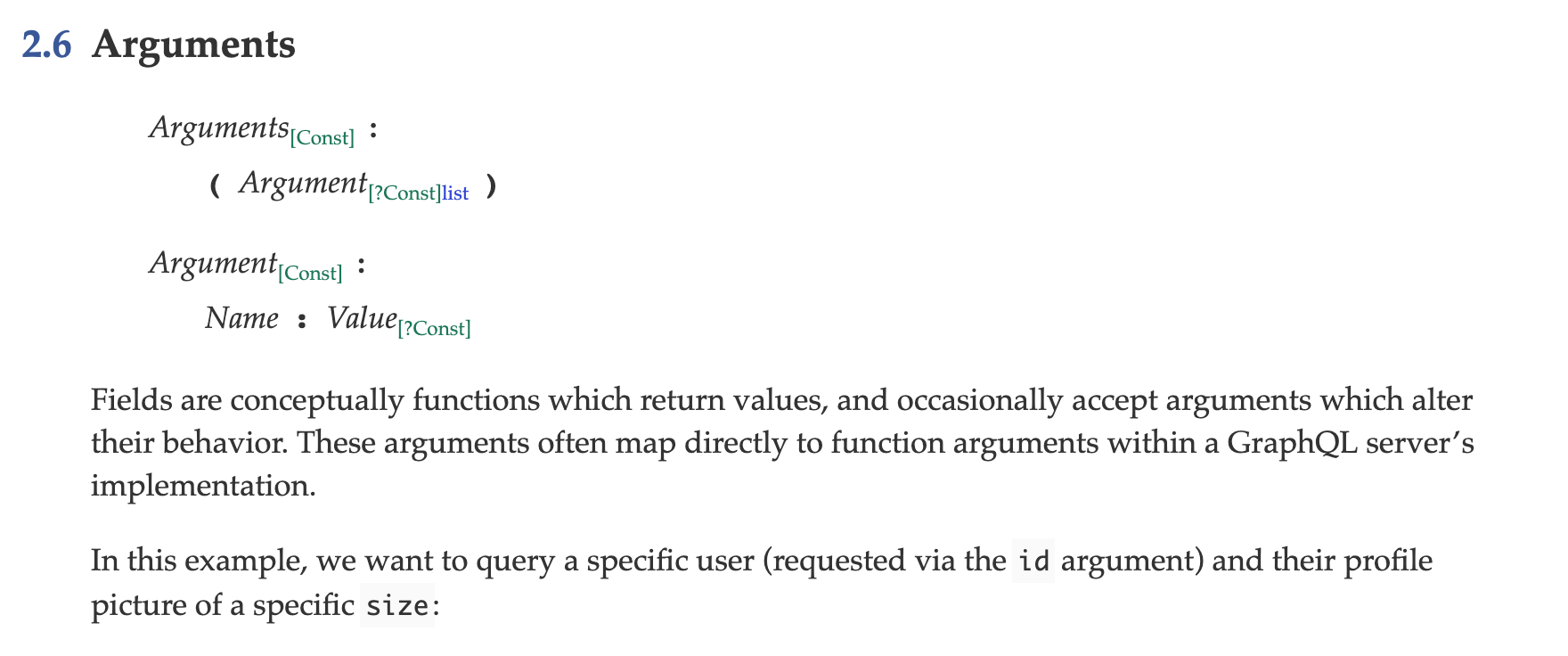

Now if you take a look the Argument definition on the GraphQL spec.

https://graphql.github.io/graphql-spec/June2018/#sec-Language.Arguments

Does the grammar not look familiar to the Racc file we've been working with?

The AST Tree

TODO

  • What is an AST tree?
  • Why AST tree?
  • How is it used in validation and execution?

Parting Words

The astute reader might also notice that to this point, we haven't really involved any parts of your domain's schema definition.

We have only parsed a given query to ensure syntactic correctness. These of concerns. The lex/parse phases are low level implementation details that most contributors won't have to deal with unless there is a spec change.
